CNC71 Nissan 350Z Hydraulic Handbrake

Description

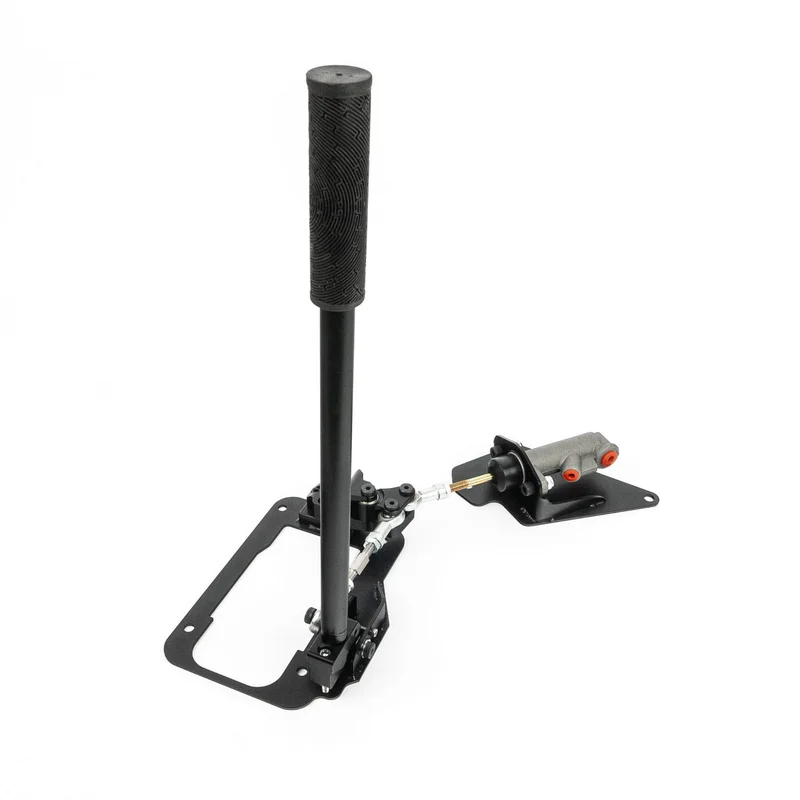

CNC71 Nissan 350Z Hydraulic Handbrake

We offer a discreet hydraulic handbrake for the Nissan 350Z.

Our product allows you to hide the entire installation under the standard elements of the center console and quickly and easily dismantle the lever (screwed element), which helps avoid unpleasant questions about the origin of the added elements in the vehicle.

The use of thick, bent steel ensures structural rigidity. No modifications are required that would compromise the integrity of the stock body or dashboard components.

Thanks to the custom rubber cover for the gear shift lever added to the set, it is not necessary to get rid of this element, which will avoid noise from the console side.

Possibility to choose the pump piston diameter:

0.625 – less force needed to lock the wheels, greater lever travel, recommended for Nissan’s “small” calipers.
0.7 – greater force required to lock the wheels, shorter lever stroke, much more direct action, recommended for “large” Brembo calipers and/or large/traction wheels.

There is also a possibility to choose the base mounting – both for cars with the steering wheel on the left (LHD) and on the right (RHD)

All elements of the set are powder coated.

We add to the set:

A prototype central tunnel plug made using 3D printing technology
Template for cutting the center console (panel with air conditioning module): the template should be aligned with the knobs on the console with three holes, then pressed lightly from the center of the sheet towards the slot and the centers of the holes marked. The suggested method is to drill two holes with a 22 drill / 22 step drill / 22 hole saw with the centers marked with crosses on the template, then cut the remaining part of the material along the lines of the diagram connecting the holes.
