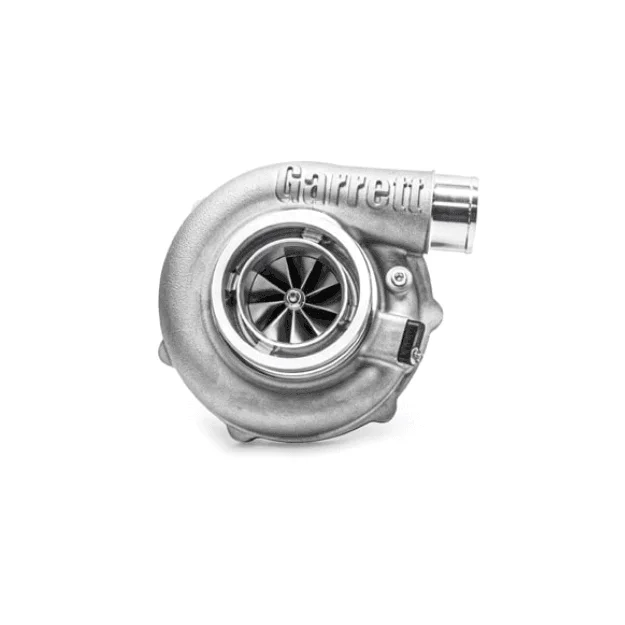

Garret G-Series G30-900 Turbo

Description

Garrett G30 900 Supercore

G-Series G30-900 turbochargers from Garrett are compatible with 2.0L – 3.5L engine displacements and capable of producing up to 900 horsepower.

G30-900 Series turbochargers are smaller and outflow all comparable products on the market. Improved durability with better materials can withstand higher temperatures and better safety margins.

The Garrett G-Series G30-900 turbochargers deliver more power and durability in a smaller frame than ever before.

Horsepower: 550 – 900HP
Displacement: 2.0 – 3.5L

Compressor

Exducer: 76mm
Inducer: 62mm
Trim: 65
Material: Forged Billet Aluminum Alloy
A/R: 0.72
Max Flow: 82 lb/min
Max Recommended Speed: 145000 RPM

Compressor Housing Connections

Inlet: 4.0″ Hose Coupler
Outlet: 2.0″ Hose Coupler

Turbine

Exducer: 55mm
Inducer: 60mm
Trim: 84
Material: Mar-M

Choose your AR and Turbine housing from the drop down.

A small AR means less power but more response. A large AR means more power but less response.

Included parts:
1x CHRA (Core)
1x Compressor cover incl. mounting kit
1x Oil inlet AN4 (Oil restrictor)
2x Water fittings AN6

Does not include downpipe flange. Select it from the compatible parts section.

Turbo return fittings and lines also available from the compatible parts section.
