Description

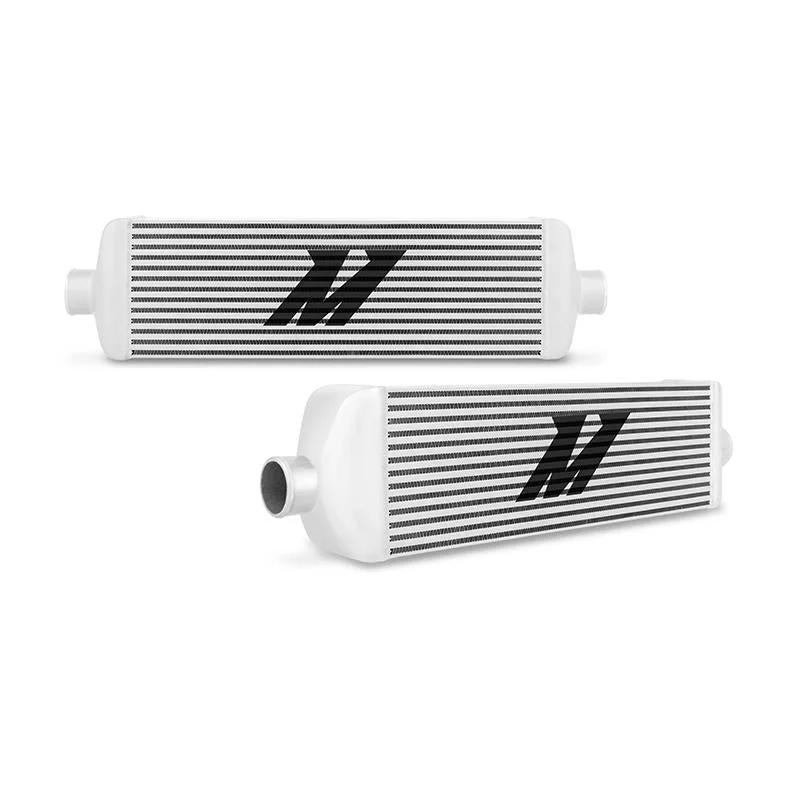

Mishimoto Universal Intercooler J-Line 550x180x90
A small cooler packing a big punch, this universal front-mount intercooler has been engineered to handle 500HP, even with its compact size. Tested on the highest HP Hyundai Genesis Coupe in the world, the Mishimoto J-Line intercooler is perfect for cars with limited front-end space. In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar. Like all Mishimoto intercoolers, the J-Line is constructed with 6061 aluminium and is TIG welded to perfection.
Key Features
- Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
- Robust, one-piece cast aluminium end tanks withstand high boost pressures
- Large 95mm thick core and 64mm inlet/outlet provides optimal flow and volume for high horsepower vehicles
TECH SPECS
| MAXIMUM RECOMMENDED BOOST PRESSURE (PSI) – | 40 |
|---|---|
| MAXIMUM RECOMMENDED HORSEPOWER – | 500 |
| OVERALL LENGTH (IN) – | 29.5 |
| OVERALL HEIGHT (IN) – | 7.5 |
| OVERALL WIDTH (IN) – | 3.75 |
| CORE TYPE – | Bar-and-Plate |
| CORE THICKNESS (IN) – | 3.5 |
| CORE LENGTH (IN) – | 22 |
| CORE HEIGHT (IN) – | 7.2 |
| INLET (IN) – | 2.5 |
| OUTLET (IN) – | 2.5 |
