Piston (Standard Size) for Toyota 3Z Engine

Description

Piston for Toyota 3Z Engine – Standard Size
Model Number: 52-8FDJF35Equipment Start Date: 01/08/2007
Equipment End Date: 31/01/2015
NON-GENUINE high quality compatible part

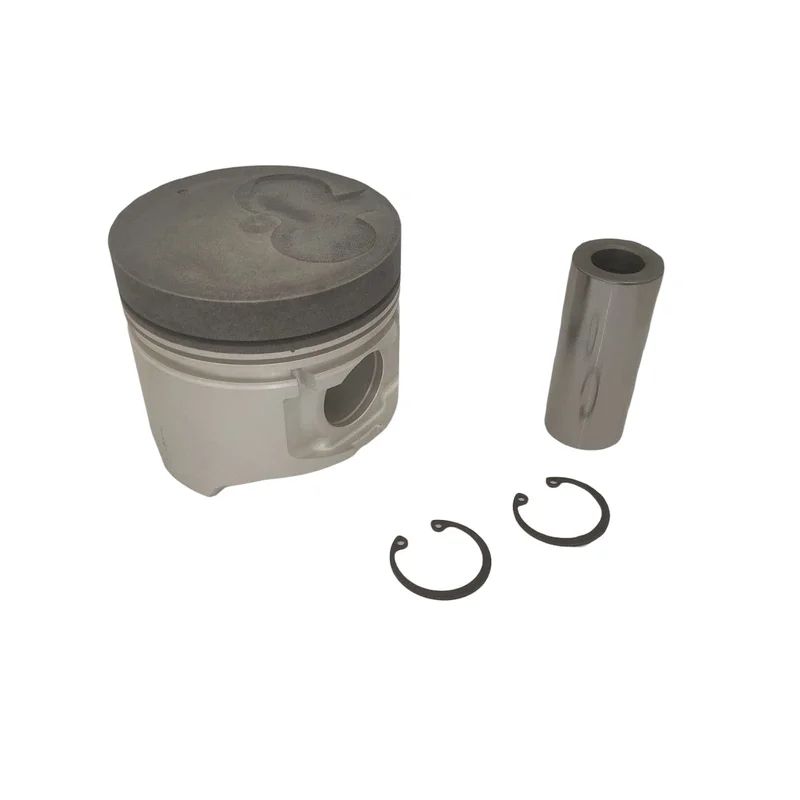

Contains

• 1 x Piston
• 1 x Gudgeon Pin
• 2 x C clips

Specifications

• Piston Diameter D1 (mm): 98
• Total Height H1 (mm): 87.5
• Shaft Diameter PD (mm): 32
• Shaft Length PL (mm): 76.9
• Compression Height CH (mm): 49.3
• Height H2: -2,80
• Width S1 (mm): 1.9
• Width S2 (mm): 2
• Width S3 (mm): 4
• Type of Head: 149
• Pin present: YES
