Name: Pulsar PSR5855G 30-770 External Wastegate
SKU: 8288505266435
Availability: InStock

Description

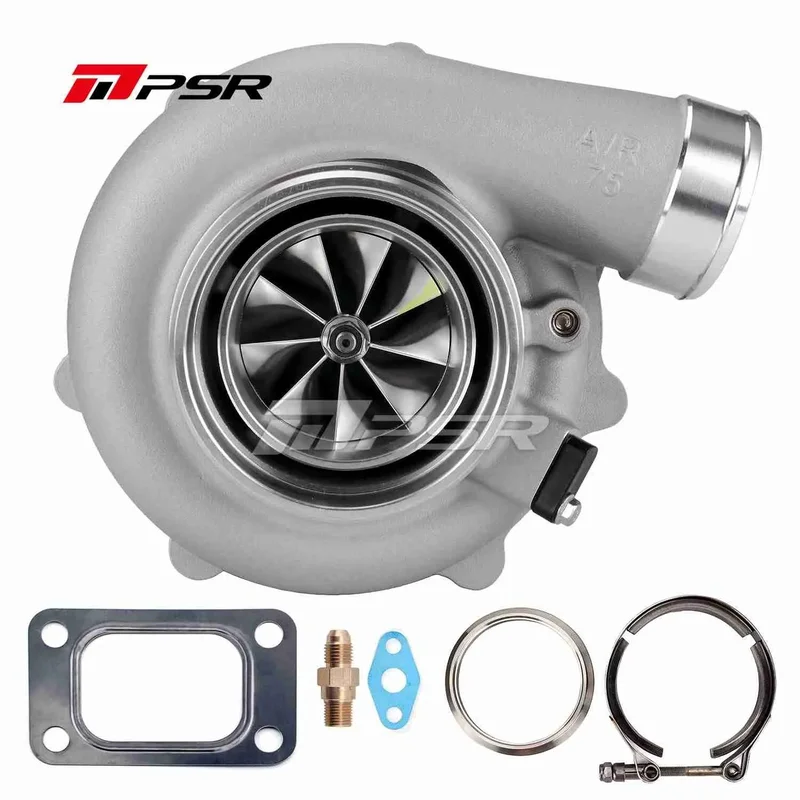

Pulsar PSR5855G

Please note, T51R housing option requires an extra 7 days handling time
Recommended displacement 2.0 to 3.5 litres with power outputs up to 770hp possible.
Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
9 Blade G-Aero Inconel 713c Turbine Wheel
Some IWG housing T flange options supplied with an adapter – please check images.
Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port

SPEC

Compressor Wheel: 58*71mm

Turbine Wheel: 60*55mm

Compressor Inlet: 4″ Hose

Compressor Outlet: 2″ Hose

Turbine Inlet: T3 or T4

Turbine Outlet: 3″ V-Band

Water Ports: 2-M14 X 1.5

Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed

Oil Outlet: Std T3 Oil Drain Flange

Additional information

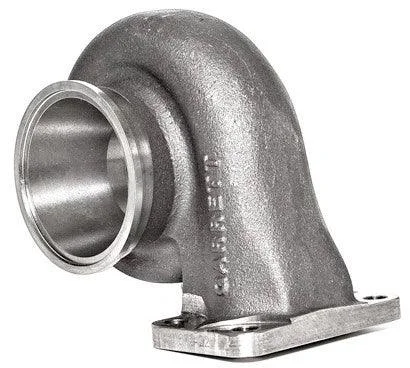

mycustom	Turbine Housing#T3 0.72AR>T4 0.72AR>Dual VBAND 0.72AR>T3 0.83AR>T4 0.82AR>Dual VBAND 0.83AR>T4 Twin Scroll 0.85>T3 1.01AR>T4 1.01AR>T25 1.01AR>Dual VBAND 1.01AR>Stainless Steel T3 0.82AR>Stainless Steel T4 0.82AR>Stainless Steel T25 0.82AR>Stainless Steel Dual VBAND 0.82AR~Compressor Housing#Standard>T51R Mod
